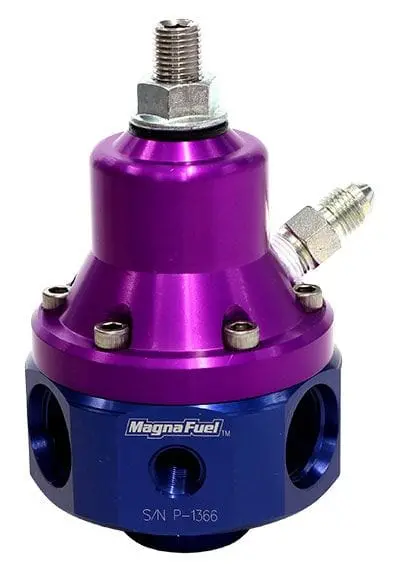

Magnafuel Wimp9940-B Four-Port Efi Fuel Pressure Regulator With 1:1 Boost Reference

Description

Magnafuel Four-Port EFI Regulator w/ 1:1 Boost Reference

x4 -8AN , x1 -8AN Return, 2000 HP, 35-85 Psi

WIMP9940-B

MP9940-B

ProStar and QuickStar Series EFI RegulatorsUnique guided-metering valve assembly provides accurate metering of fuel flowMagnafuel EFI Regulators provide the most stable platform for fuel delivery in the performance industryMaintains steady fuel flow during times of sudden changes in fuel demands, such as initial launch, gear change and nitrous oxide applicationDesigned for use with the MagnaFuel EFI gear pumpsRegulators available in two different body sizes and different spring combinations to suit your fuel flow at pressure specificationsEach Regulator has 1/8″ NPT gauge port, standard filtered vent fitting or boost reference fitting (1:1 compensation ratio)Special fittings and adapters available for most applicationsAll MagnaFuel Regulators are hand assembled to the highest qualityMagnaFuel Regulators are compatible with racing gasoline and alcohol fuelsBillet body precision CNC-machined from aircraft-quality aluminium and hard anodized for extra long service lifeCompletely user-serviceable, with ready to order replacements parts.
